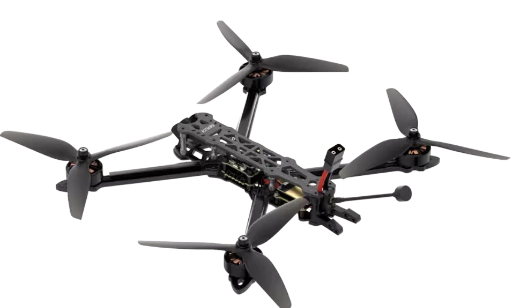

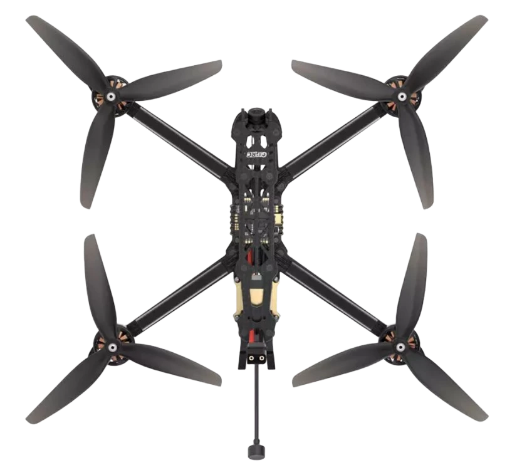

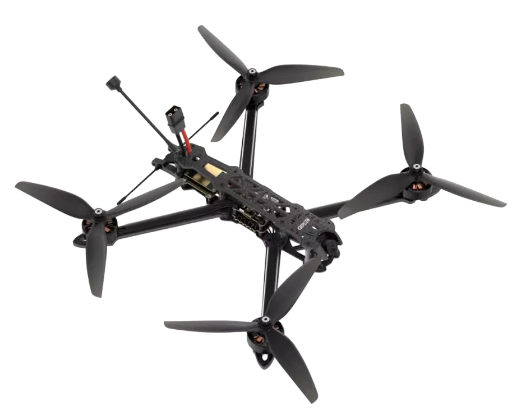

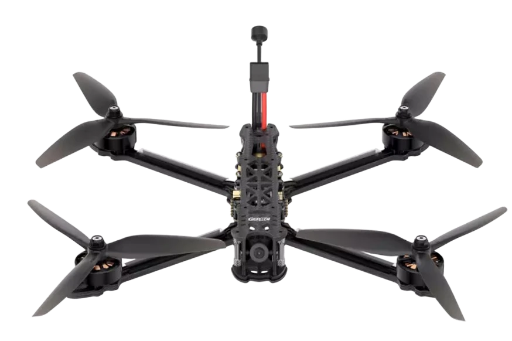

SPEED 7 Inch FPV Drone

1. Use RAD58G16W high-power image transmission to ensure signal stability and reliability

2. With GEPRCE28065 1350KV motor, it is recommended to use 6S battery to ensure strong output

3. Using stable performance F405 flight control and BLheli S5A ESC, the overall performance is stable and the hand feels comfortable.

4. The lens uses CaddxH1, good visual experience

Rack:GEP-MK4-7

Wheelbase size: 295mm

Top plate thickness: 3mm

Base plate thickness: 3mm

Arm thickness: 5mm

Central plate thickness: 2mm

Flight Control: GEPRC F405 V2

ESC: SPAN 50A BLHeli_S

MCU: STM32F405RGT6

Gyroscope:ICM-42688-P

OSD: Betaflight OSD w/AT7456E chip

Image transmission: GEPRC RAD 58G 1.6W

Lens: CaddxH1

Antenna: Momoda 5.8G RHCP SMA interface

Motor: GEPRC E2806.5 1350KV

Award Leaf: Gemfan 7037-3

Weight:455g

Receiver: PNP/ TBS NanoRX /GEPRC ELRS24 /GEPRC ELRS 915 Recommended battery: Lipo 6S 2600mah-4200mah /Lion 6S 6000mah

Flight time: 12-30 minutes

SPEED4-7 simulation kit

Gemfan 7037-3(pair)x4

M20*250mm battery tie x2

Battery anti-slip mat x2

Spare screw pack

L-shaped screwdriver 1.5mmx1

L-shaped screwdriver 2mmx1
