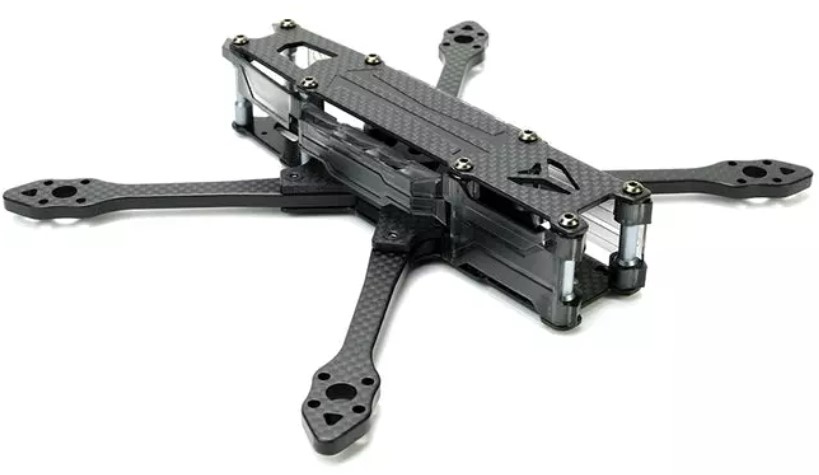

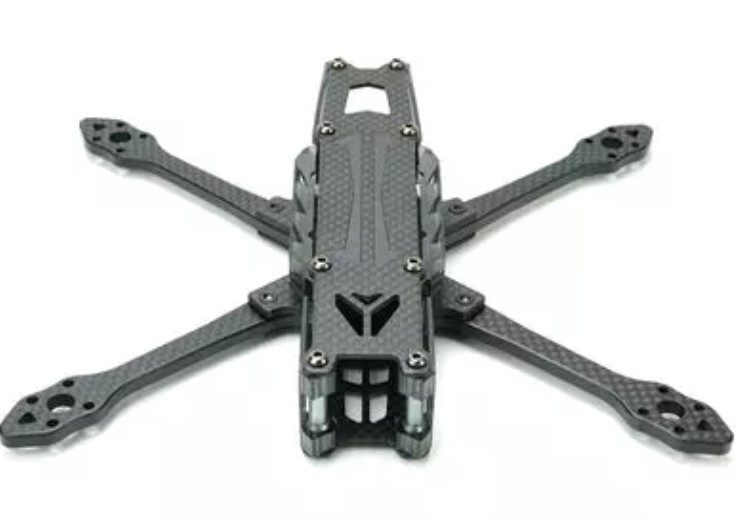

SPEED 215C Drone rack one-key removal drone frame FPV DRONE A accessories

This drone frame is equipped with an ultra-light injection molded protective cover, which can improve heat dissipation and has a one click disassembly function

Product features:

• Ultra-light injection molded colorful protective case

• Air duct design, improve the heat dissipation effect

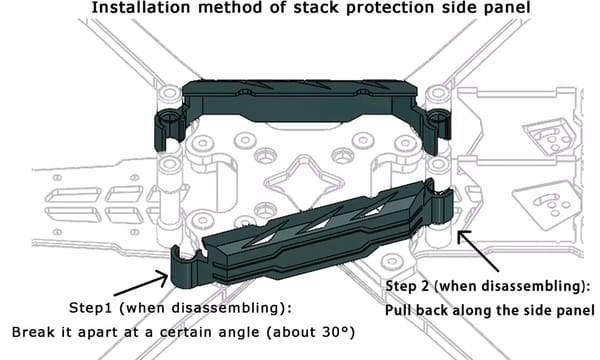

• Convenient parameter adjustment side panel, one-key removal

• Innovative TPU shock absorption structure

• High strength carbon plate

• Multi-layer fuel injection + chamfering design


  product list:

  Frame bag:

  • 2mm Roof*1

  • 2mm Bottom Plate*1

  • 5mm Arm*5

  • 3mm Center Plate*1

  • 2.5mm Arm limit plate*1

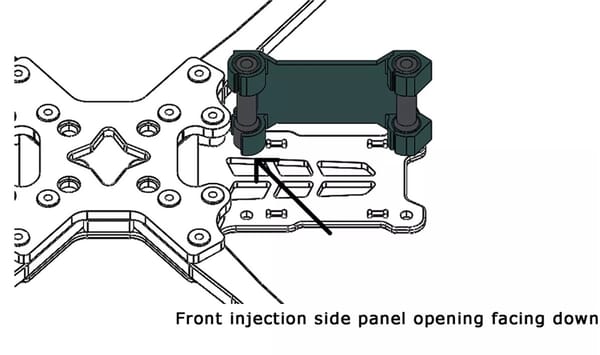

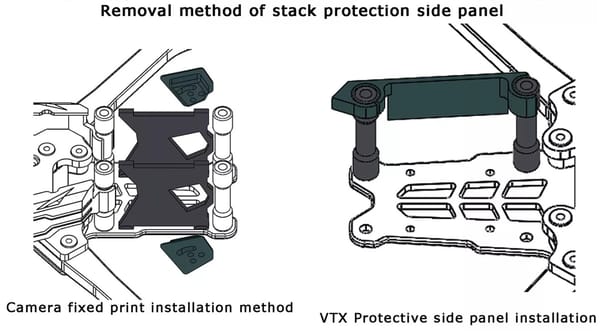

  • 2mm Camera fixed side panel*2

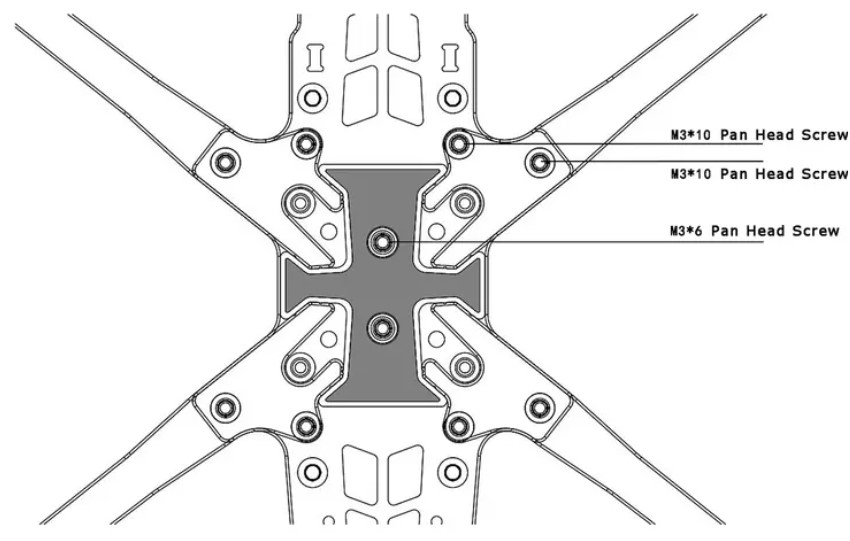

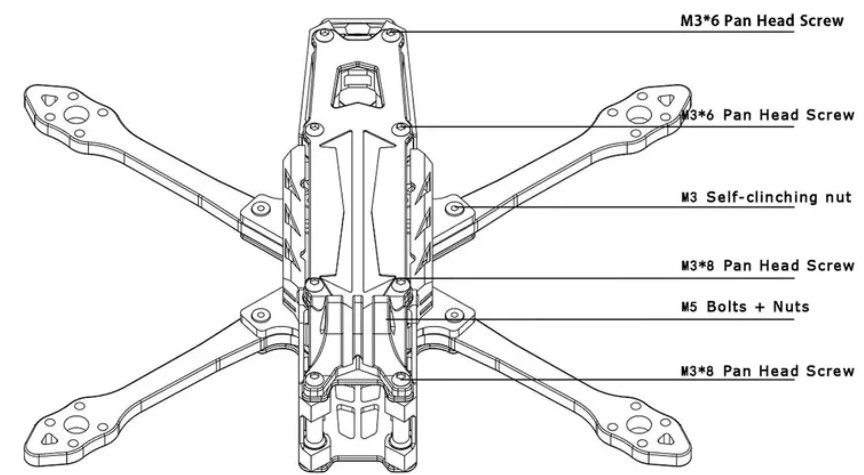

  • Screw Pack:

  • M3*28Aluminum Column*8

  • M5*20 Bolt*1

  • M5 Dome Head Nut*1

  • M3*28 Pan Head Screws*4

  • M2 Nut*4

  • M2*16 Pan Head Black ickel Plated Screws*4

  • M3*8 Pan Head Black Nickel Plated Screws*12

  • M3*6 Pan Head Black Nickel Plated Screws*14

  • M3*10 Pan Head Black Nickel Plated Screws*16

  3D Printing Accessories:

  • GPS mount*1

  • Arm Limiter Plate Stabilizer*1

  • Universal GoPro Mount*1

  • Camera Mount*2

  • VTX Antenna Base*1
