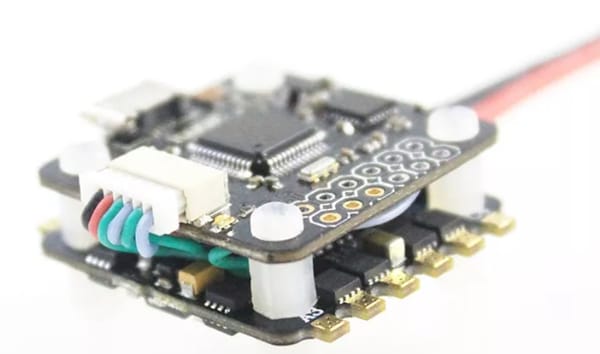

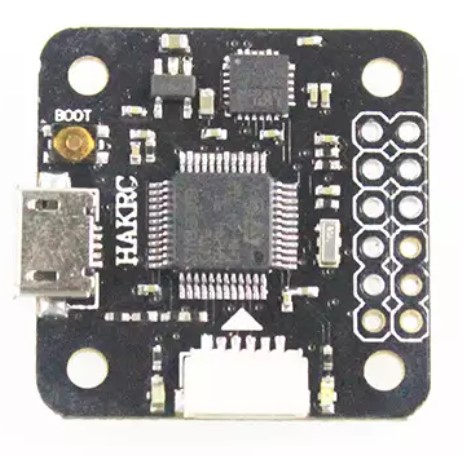

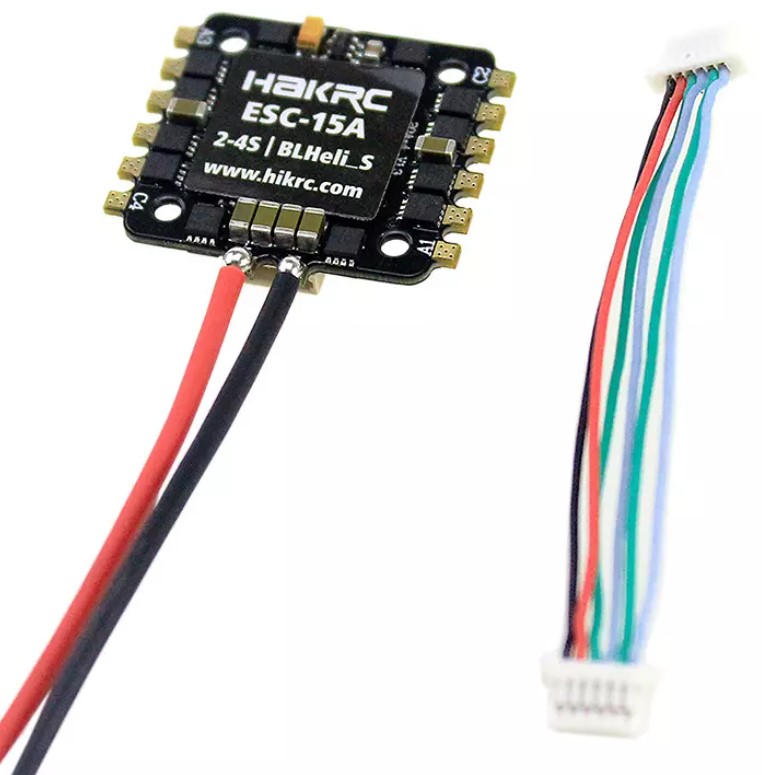

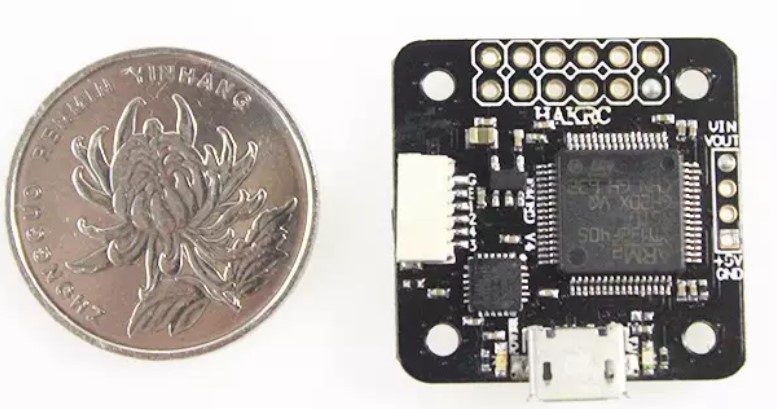

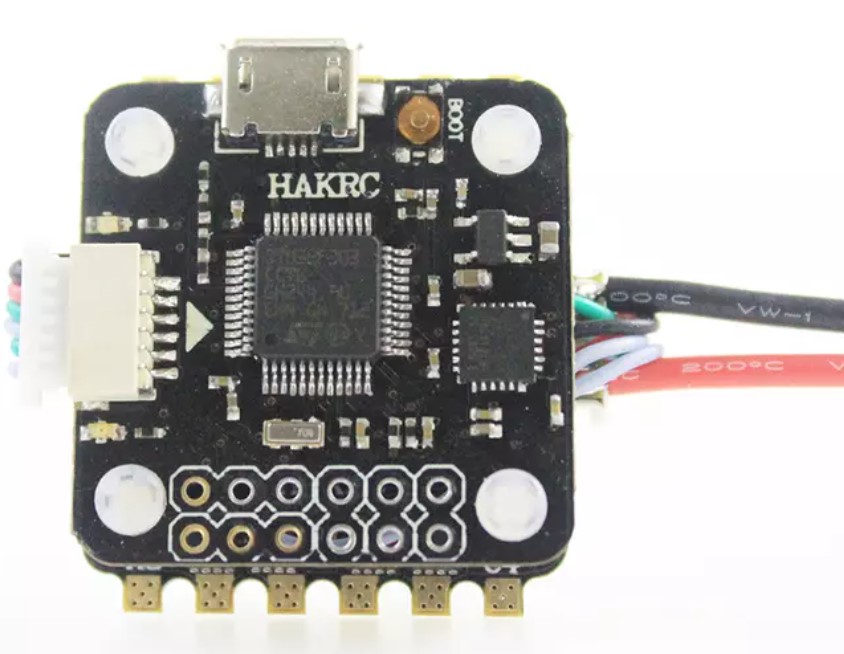

FPV Drone Four-axis FPV Mini F4/F3+OSD Fly Tower 15A Four-in-one ESC Indoor Brushless Hole Spacing 20mm

Technical Parameters:

1. Input voltage: 2-4S LiPo/2-4S HV LiPo

2.BEC output: none

3. Continuous operating current of a single ESC: 15A (maximum current: 20A for 5 seconds)

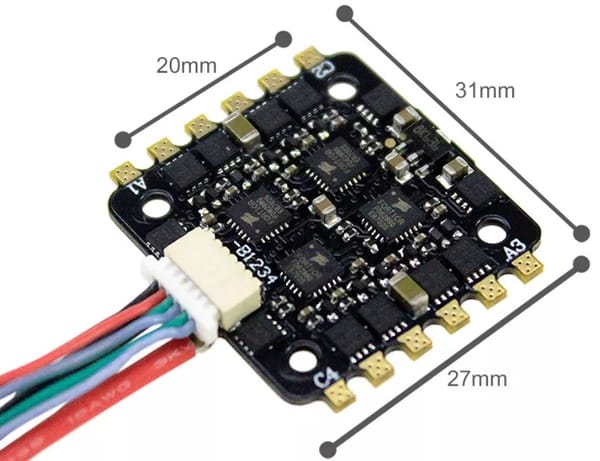

4. Four-in-one ESC size: 27*31mm (including the maximum size of the pad and protruding points)

5. Four-in-one ESC weight: 3.7g

6. Firmware: BLHELI_S

7. Support DSHOT, Oneshot, forward and reverse

8. Processor: SILABS EFM8BB21F16G

9.MOS tube: TPN2R703NL

10. Driver: New generation three-in-one MOS driver
