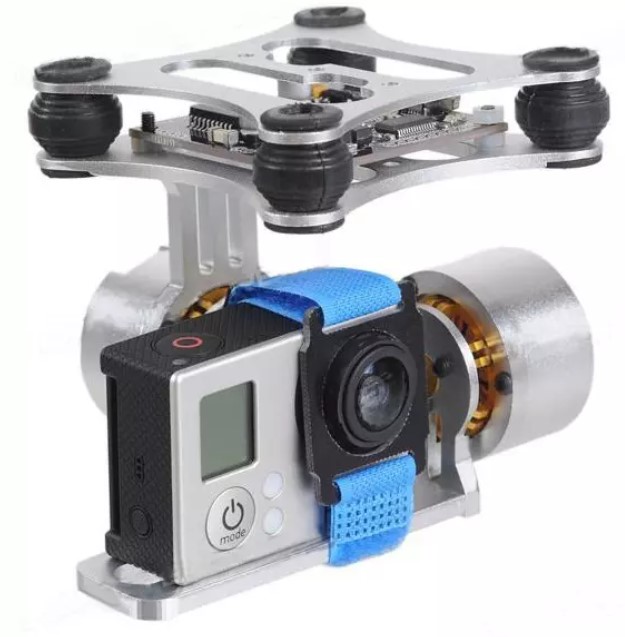

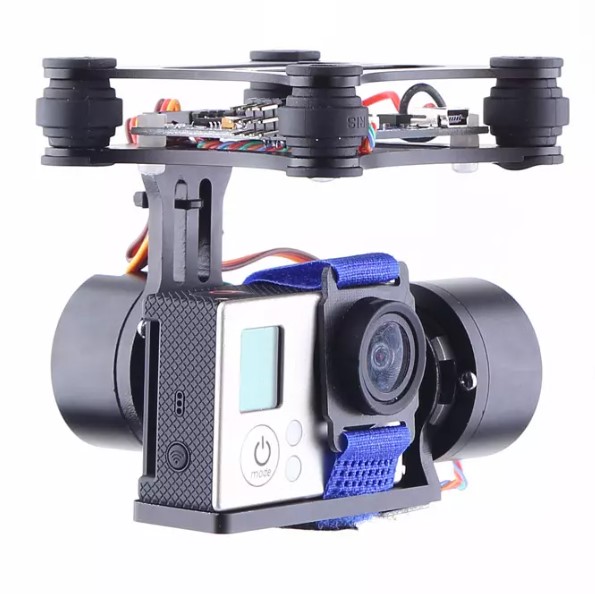

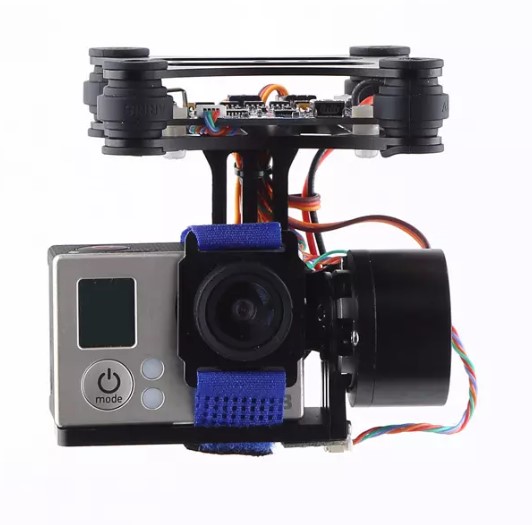

FPV drone camera Gopro3 brushless gimbal two-axis suitable for DJI Elf
$70.00
FPV drone camera Gopro3 brushless gimbal two-axis brushless gimbal suitable for DJI Elf (actual product does not include camera)
Gopro3 brushless gimbal for aerial FPV Gopro two-axis brushless gimbal DJI Elf Walkera QR X350
Parts: This means that empty gimbals are in bulk and you need to go back and assemble them yourself. Kneaded gimbals do not include straps and packaging.
Complete set of adjustment-free version: ready for assembly and debugging, ready for use. Includes camera strap and carton packaging.
Weight: 212G
The gimbal is available in silver and black
DJI phantom CNC Brushless PTZ
Name:GOPRO3 CNC metal Brushless PTZ
Material:CNC Aluminium alloy
Motor:Model 2208 KV80 Brushless PTZ motor
Control Panel: BGC2.2 Brushless PTZ control panel
Software BGC2.2
Strap:GOPRO camera strap
Size:80*80*80mm(L*W*H)
Net weight:200g
Compatible camera:GOPRO series
Mounting plate pitch:20mm
Batteryplug type:JST plug
Voltage:12V
How to install:
1. Remove the damping balls,open the top cover of the mounting plate
2. Install the top cover of the mounting plate to the bottom of the DJI phantom
3. Install the damping balls
4. Install your GOPRO camera,and fasten it with straps
Notes:
Please do not energize the PTZ until the battery is mounted in the GOPRO camera which is fixed on the PTZ.Otherwise,the center-of-gravity posttion of the PTZ will shift,which will makes the PTZ vibrate.power supply of the PTZ is recommended as 12V.
