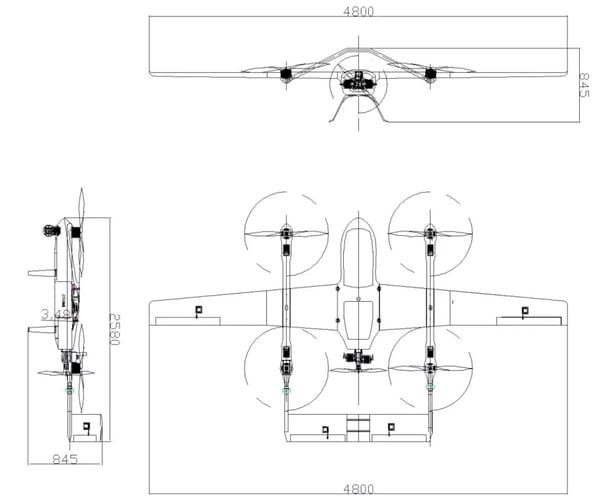

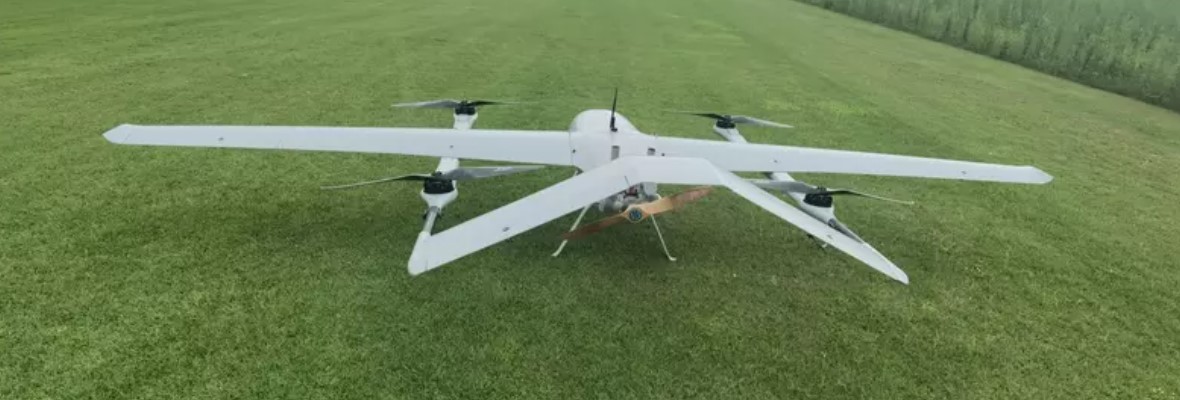

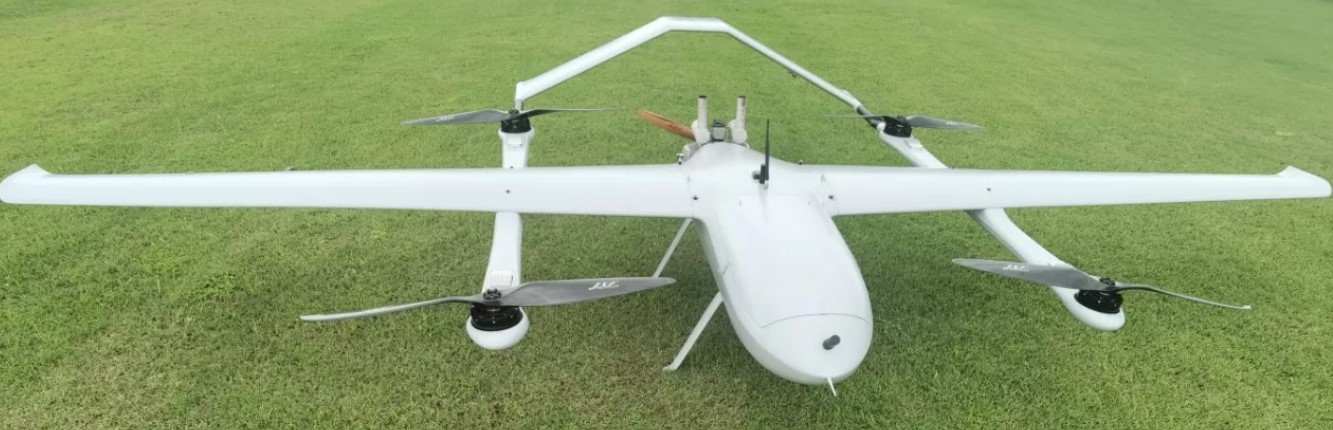

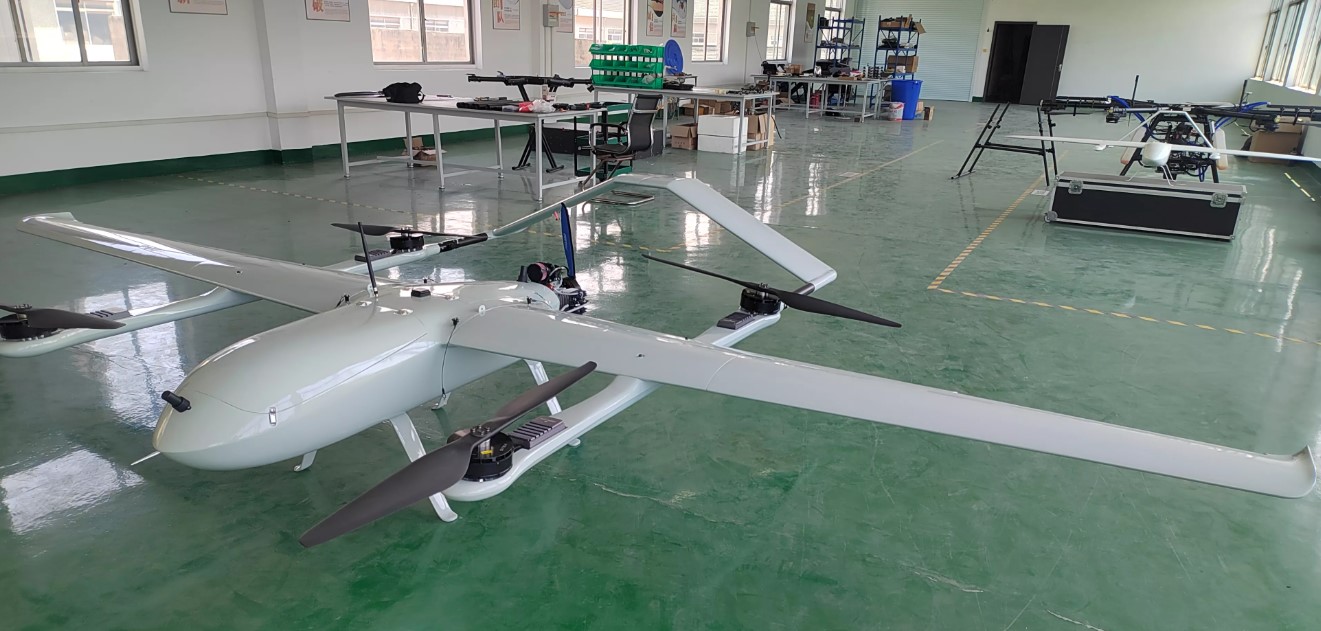

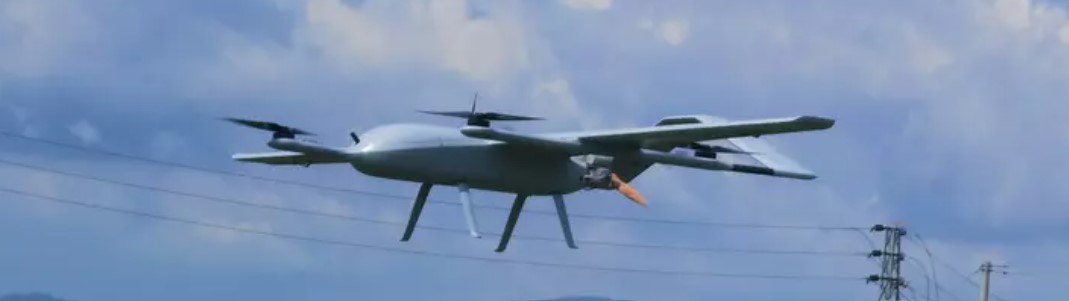

DP80P UAV - Oil-powered vertical take-off and landing composite wing UAV with a wingspan of 6m
$325000.00
1. Performance characteristics
DF80P UAV platform is an electric long-flight composite wing vertical take-off and landing UAV independently developed by our company. It adopts a composite wing overall layout of fixed-wing combined with four-rotor, which solves the problem of vertical take-off and landing of fixed-wing UAV in a simple and reliable way. It has the characteristics of long flight time, high speed and long distance of fixed-wing UAV and the function of vertical take-off and landing of rotary-wing UAV. The vertical take-off and landing mode greatly enhances the environmental adaptability of the modified UAV platform.
This UAV platform can operate smoothly in complex terrains such as mountains, hills, jungles and areas with dense buildings, which greatly expands the application scope of UAVs and is an ideal choice for industrial-grade UAVs.
The DF80P UAV platform is equipped with an industrial-grade vertical take-off and landing fixed-wing flight control and navigation system and professional aerial photography, aerial survey and inspection ground station software, which can ensure that the UAV can fly autonomously throughout the entire process, and can complete autonomous take-off, flight state conversion, autonomous cruising, autonomous landing and other flight stages without the intervention of operators. At the same time, it supports automatic route planning of 1,000 waypoints and emergency landing plans of 100 waypoints.
The UAV platform has the following characteristics and advantages:
(a) Practical and efficient: It has the characteristics of long flight time, high speed, long distance and large payload of fixed-wing UAVs; .
(b) Vertical take-off and landing: It has the take-off and landing method of rotary-wing UAVs, which greatly reduces the requirements for take-off and landing sites and airspace.
(c) Low cost of use: No complex and bulky launch and recovery equipment is required, and no additional recovery sensors are required;
(d) Easy to operate: It integrates a special flight control and navigation system, and the whole process is fully autonomous. The operator only needs to send the flight plan, and no professional training and operating experience are required;
(e) Compact system: No complex auxiliary equipment is required, and transportation, deployment, maintenance and withdrawal are simple
2. Industry Applications

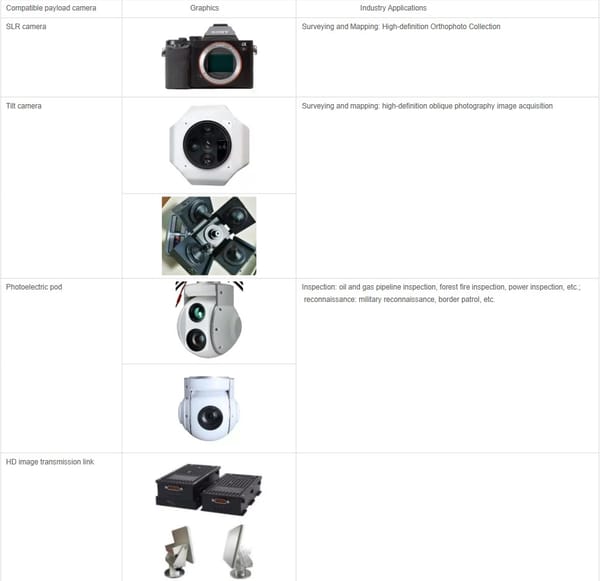

The DF80P UAV platform can be equipped with electro-optical pods, high-definition image transmission links, high-definition aerial survey cameras, oblique photography cameras and other payload equipment, and is widely used in military and police reconnaissance, border patrols, oil and gas pipeline inspections, power inspections, forest firefighting, surveying and mapping and other industries.
