Axis Gimbal Storm32BGC Three-axis Gimbal
$70.00
Axis Gimbal Storm32BGC Storm32BGC Three-axis Gimbal (actual product does not include camera)
Product name: GOPRO3/GOPRO4CNC metal brushless 3-axis gimbal.
Motor model: 2206/100T brushless motor: 2 pieces, 2805/100T brushless motor: 1 piece

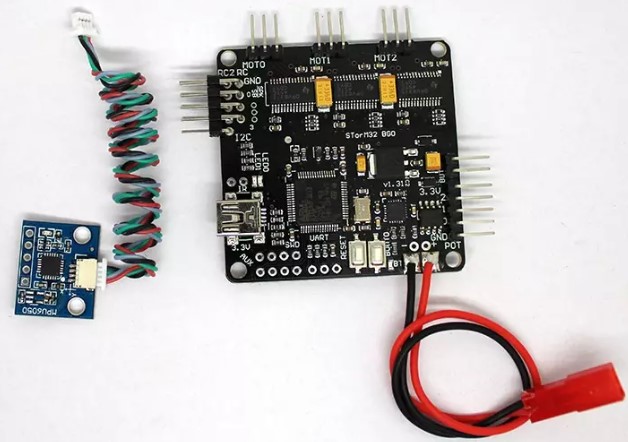

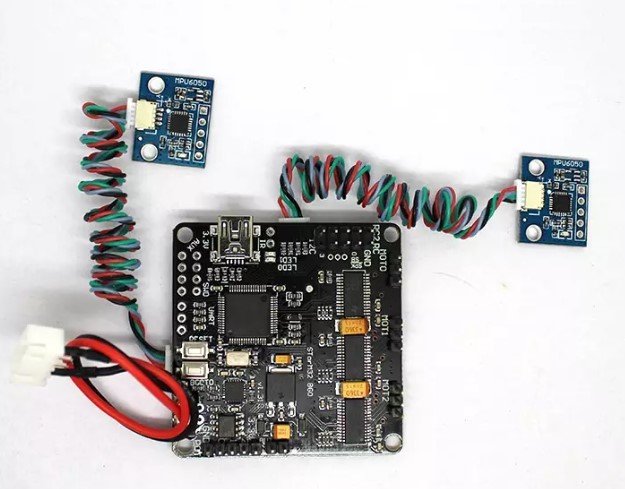

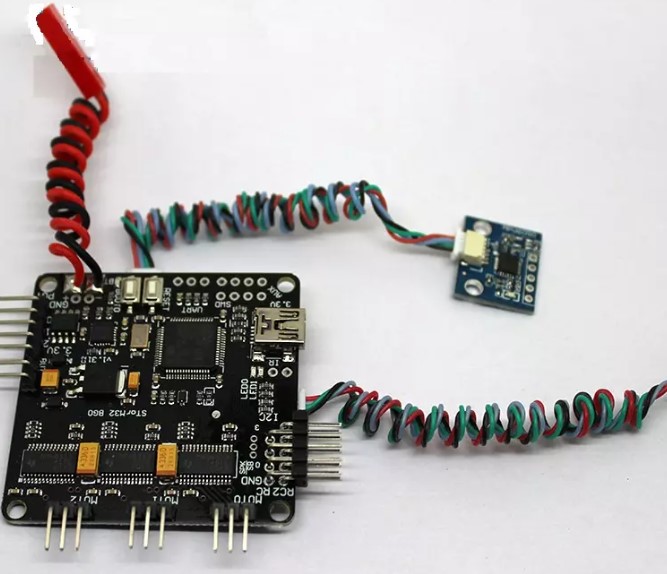

Driver board: STORM32BGC
Firmware version: o323bgc-release-v090
Hardware version: V130
Working voltage: 3-4S (11.1-16.8V)
Working current: 350mA
Joystick control angle: PITCH: -25 degrees + 25 degrees / ROLL: -25 degrees + 25 degrees / YAW: -90 degrees + 90 degrees.
Switch control mode: lock/follow
Specification size: 80*80*100mm (L*W*H)
Packing size: 10*10*10cm
Weight: 180g
Packing weight: 272g
Scope of application: GOPRO series compatible cameras.
Maximum load weight that can be withstood: 150g
PWM frequency: 50Hz
PWM duty cycle: period 20ms, high level corresponds to 1ms-2ms
Period: 20ms
Power connector: JST and HX
How to install:
1. Remove the damping ball and open the top mounting plate
2. Lock the mounting plate to the lower part of the aircraft with screws
3.Install the vibration damping ball
4. Install the camera and tighten the camera with straps.
Instructions for use
After installing the camera (be sure to install the camera, otherwise it will keep shaking), stabilize the gimbal for about 20 seconds after powering on (do not shake the gimbal, keep the gimbal hanging and off the ground). After hearing a sound, you can use it normally.
Pitch can be controlled via receiver or other separate PWM channels
Follow mode or lock mode can be set
Angle mode or speed mode can be set
